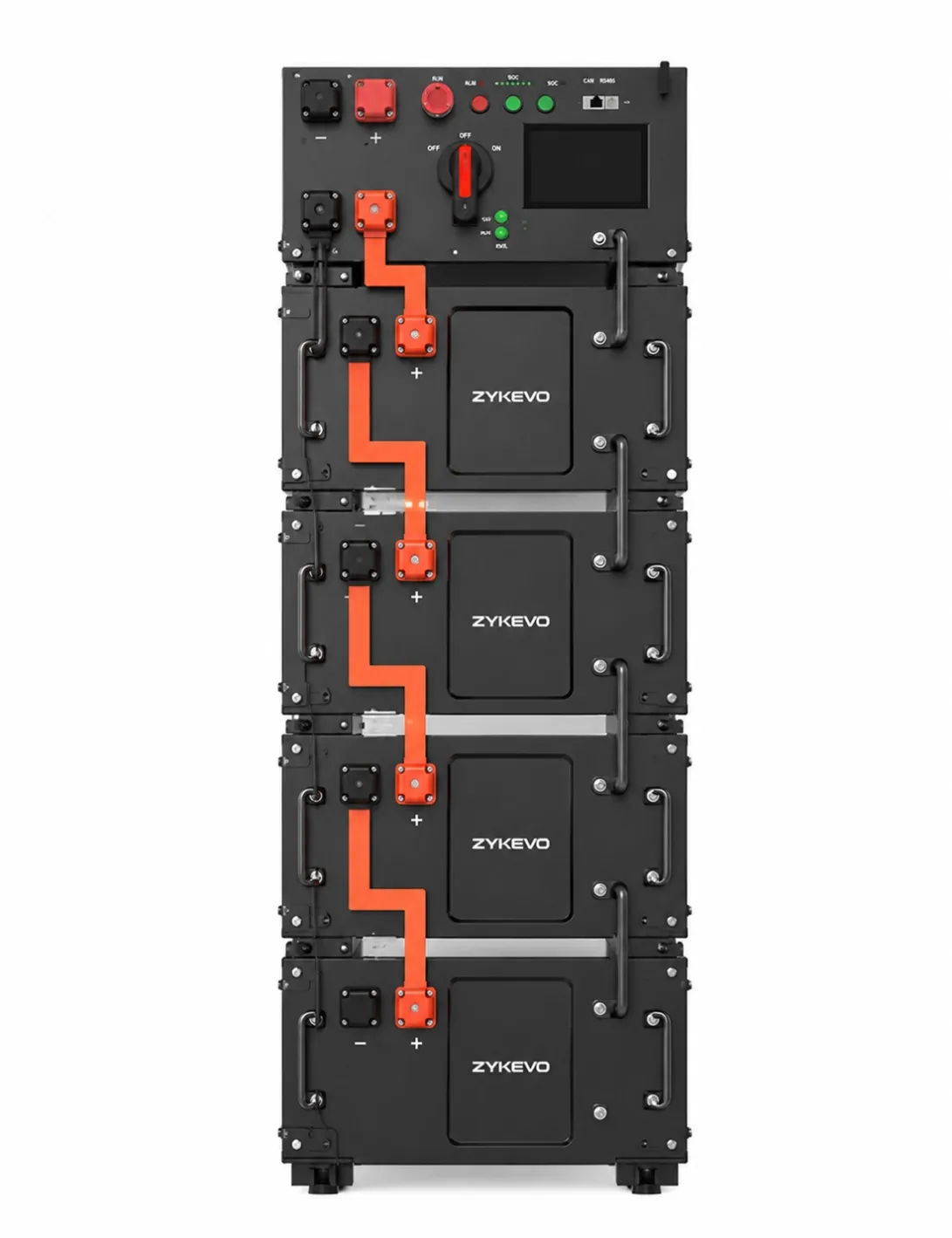

256v314ah (1)
256v314ah (2)
UPS Lithium Battery

UPS High-Voltage Lithium Battery Systems

High-voltage LiFePO4 battery systems for 192V / 384V / 512V UPS battery projects, battery replacement, lead-acid to lithium retrofit and long-runtime UPS applications. Capacity range from 100kWh to 261kWh. Custom voltage configurations are available after compatibility review.

ZYKEVO high-voltage lithium battery systems are designed for 192V / 384V / 512V UPS backup power projects where DC voltage, charging current, BMS logic and runtime must be reviewed together before final configuration.
They are mainly used for UPS battery replacement, lead-acid to lithium retrofit, long-runtime UPS projects and new UPS battery matching for server rooms, small data centers, telecom sites and industrial backup power applications.
For project-specific UPS systems, custom high-voltage configurations can be reviewed according to the UPS DC voltage window, charger specification, load and required backup time.

Key Features
  • Modular high-voltage LiFePO4 battery system for compatible UPS projects
  • 64V314Ah battery module, 20.096kWh per module
  • 5 to 13 module configurations
  • Main project positioning: 192V / 384V / 512V UPS battery matching
  • Custom 320V-832V configurations available for project-specific UPS systems
  • Energy range from 100.48kWh to 261.248kWh
  • CAN2.0 communication and 4.3-inch HMI
  • Suitable for UPS battery replacement, lead-acid to lithium retrofit and long-runtime backup projects
  • UPS compatibility review is required before quotation

Detailed Parameters for Custom UPS Battery Configurations
ZYKEVO front-end positioning focuses on 192V / 384V / 512V UPS battery matching. The following 320V-832V range is a project-specific custom configuration range based on the 64V314Ah modular platform. Final selection depends on the UPS DC voltage window, charger specification, BMS communication and required backup time.

Custom Configuration Range
5 modules Rated voltage: 320V Energy: 100.48kWh Operating voltage: 260-365V Rated charge / discharge power: 48kW
6 modules Rated voltage: 384V Energy: 120.576kWh Operating voltage: 312-438V Rated charge / discharge power: 57.6kW
7 modules Rated voltage: 448V Energy: 140.672kWh Operating voltage: 364-511V Rated charge / discharge power: 67.2kW
8 modules Rated voltage: 512V Energy: 160.768kWh Operating voltage: 416-584V Rated charge / discharge power: 76.8kW
9 modules Rated voltage: 576V Energy: 180.864kWh Operating voltage: 468-657V Rated charge / discharge power: 86.4kW
10 modules Rated voltage: 640V Energy: 200.96kWh Operating voltage: 520-730V Rated charge / discharge power: 96kW
11 modules Rated voltage: 704V Energy: 221.056kWh Operating voltage: 572-803V Rated charge / discharge power: 105.6kW
12 modules Rated voltage: 768V Energy: 241.152kWh Operating voltage: 624-876V Rated charge / discharge power: 115.2kW
13 modules Rated voltage: 832V Energy: 261.248kWh Operating voltage: 676-949V Rated charge / discharge power: 124.8kW

Battery Module
  • Battery type: LiFePO4
  • Rated voltage: 64V
  • Rated capacity: 314Ah
  • Available capacity: 20.096kWh
  • Combination mode: 20S1P
  • Cycle life reference: >=6000 cycles at 80% DOD, 25C
  • Dimensions: 447 x 885 x 265mm
  • Weight: 145kg +/-3%
HV Control Module
  • Operating voltage range: 200V-1000V
  • Current options: 100A / 200A / 300A
  • Communication interface: CAN2.0
  • Display: 4.3-inch HMI
  • DC disconnect: circuit breaker 126A, 1000V rating

Typical UPS Project Applications
UPS Battery Replacement
For aging VRLA battery strings in compatible UPS systems, this high-voltage LiFePO4 platform can be reviewed as a replacement option. The UPS DC voltage window, charger current, battery protection logic and available installation space must be checked before quotation.
Lead-Acid to Lithium Retrofit
For UPS service companies managing battery replacement projects, lithium retrofit can help reduce battery maintenance frequency and support longer service planning. It should be handled as an engineering review, not a universal drop-in swap.
Long Runtime UPS Projects
The 100-261kWh configuration range can support selected long-runtime backup projects for server rooms, small data centers, telecom sites, industrial control loads and other critical backup power applications.
New UPS and Battery Matching
For new UPS projects, the UPS and battery should be matched together. Capacity, DC voltage, charger current, BMS communication, required runtime, cabinet space and site environment should be confirmed before final model selection.
Compatibility Check Before Quotation
Please prepare the following information before requesting a quote:
  • UPS brand and exact model
  • UPS DC voltage window
  • UPS charger voltage and charger current
  • Required communication: CAN, RS485, dry contact or no communication
  • Real load in kW
  • Required backup time
  • Existing battery type and battery string details
  • Existing cabinet and cable condition
  • Indoor temperature and maintenance space
  • Required documents, labels and transport paperwork
Important Notes
  • This battery system is for selected UPS backup power projects.
  • It is not a home energy storage battery.
  • It is not a grid-scale BESS product.
  • UPS compatibility must be confirmed before quotation and production.
  • Runtime depends on real load, UPS losses, DOD, temperature and battery settings.
Planning a UPS battery replacement or lithium retrofit?
Send your UPS model, DC voltage, real load and required backup time. ZYKEVO can help review whether a high-voltage lithium battery configuration is suitable for your project.
