TITAN 33 Series (3:3 Phase)

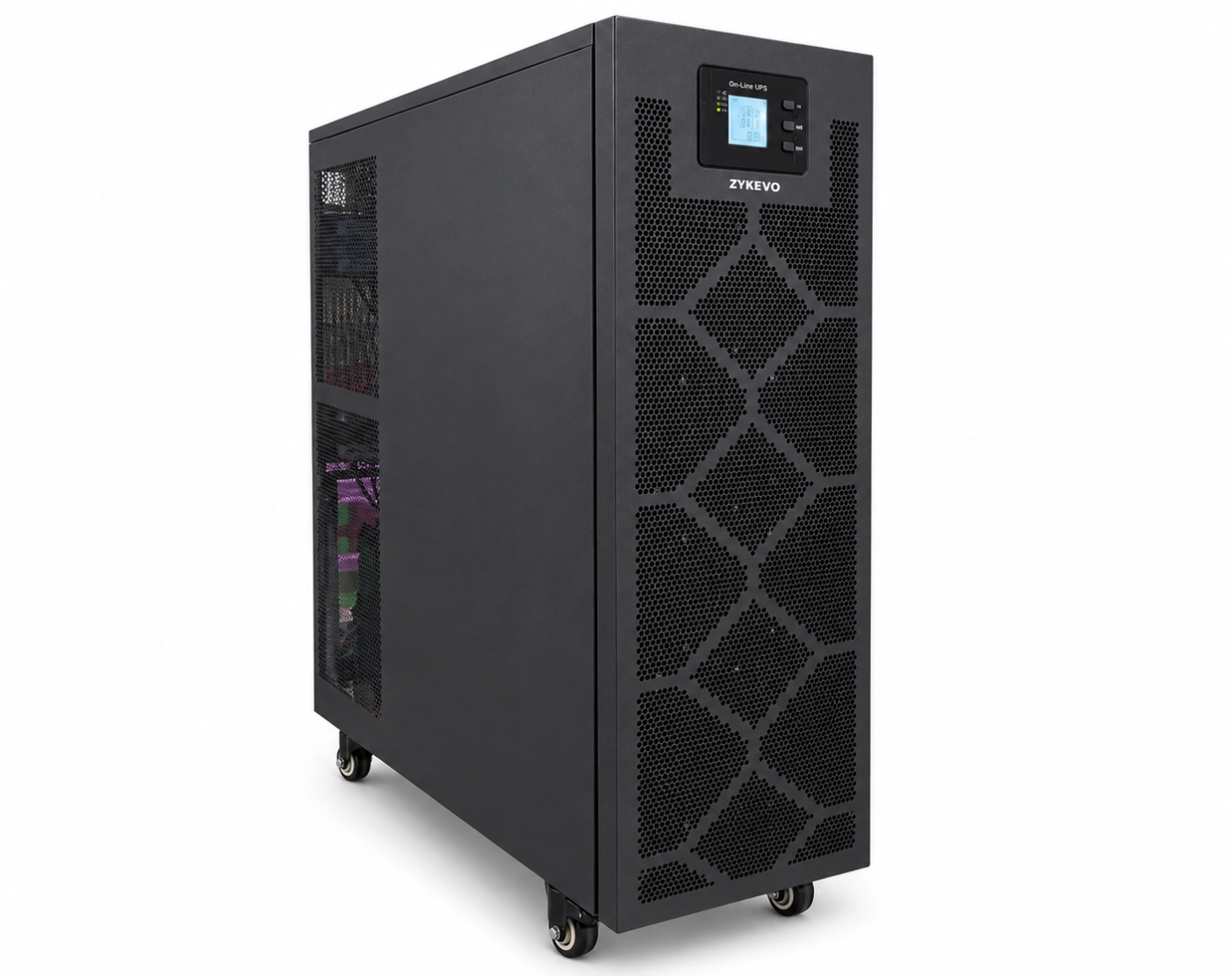

TITAN 33 Series 30kVA–80kVA High Frequency Three Phase Online UPS
TITAN 33 Series 30kVA–80kVA High Frequency Three Phase Online UPS provides reliable backup power for data centers, telecom sites, large server rooms and industrial facilities. Designed with online double conversion technology, wide input voltage range, DSP control, N+X parallel redundancy, lithium battery compatibility and OEM branding support.
TITAN 33 Series 30kVA–80kVA High Frequency Three Phase Online UPS
The ZYKEVO TITAN 33 Series 30kVA–80kVA is a high frequency three phase online UPS designed for data centers, telecom sites, large server rooms, industrial facilities and mission-critical backup power applications.
Built with true online double conversion technology, advanced DSP control and wide input voltage tolerance, TITAN 33 helps protect critical loads from voltage fluctuation, generator instability, frequency variation and unexpected power interruptions.
This series is suitable for customers who need higher power capacity, stable output quality, scalable redundancy and flexible OEM support.
Product Overview
TITAN 33 Series 30kVA–80kVA provides three phase input and three phase output power protection for demanding commercial and industrial environments.
Compared with smaller UPS systems, this range is designed for higher load density, longer backup runtime requirements and more complex power distribution projects.
It is widely used in medium data centers, telecom equipment rooms, industrial automation sites, medical facilities, government infrastructure and commercial buildings.
Typical Applications
- Medium and large server rooms
- Data centers and edge data centers
- Telecom equipment rooms
- Industrial automation systems
- Manufacturing facilities
- Medical and laboratory equipment
- Government and public infrastructure
- Commercial buildings
- Security monitoring centers
- Generator-based backup power systems
Key Features
- True online double conversion technology
- High frequency three phase UPS design
- Advanced DSP digital control
- Wide input voltage range for unstable grid conditions
- High input power factor
- Stable output voltage accuracy
- 0ms transfer time between mains and battery
- N+X parallel redundancy support
- ECO mode for higher energy efficiency
- Flexible battery configuration
- VRLA and lithium battery compatibility
- Intelligent charging management
- USB and RS485 communication interfaces
- Optional SNMP and dry contact cards
- Suitable for OEM and private label UPS projects
Built for Critical Power Environments
Power problems in real projects are often more complex than a simple blackout.
Many sites face voltage fluctuation, unstable generators, poor grid quality, frequency variation, high load impact, dust, heat and humidity.
TITAN 33 is designed to provide stable output under demanding power conditions. Its wide input voltage tolerance and online double conversion topology help isolate critical loads from grid disturbance and reduce downtime risk.
For system integrators and project contractors, this makes TITAN 33 a practical solution for sites where power reliability directly affects business continuity.
Technical Specifications
Item | Specification |
|---|---|
Series | ZYKEVO TITAN 33 |
Capacity Range | 30kVA / 60kVA / 80kVA |
UPS Type | High Frequency Online UPS |
Topology | True Online Double Conversion |
Input Phase | Three Phase + Neutral + Ground |
Output Phase | Three Phase + Neutral + Ground |
Input Voltage Range | 208Vac–478Vac |
Input Frequency Range | 45–55Hz at 50Hz / 54–66Hz at 60Hz |
Input Power Factor | ≥0.99 |
Output Voltage | 380 / 400 / 415Vac |
Output Voltage Accuracy | ±1% |
Output Power Factor | 0.9 |
Output THD | ≤2% linear load / <5% nonlinear load |
Crest Factor | 3:1 |
Transfer Time | 0ms |
Efficiency | >94.5% in normal mode |
ECO Mode Efficiency | Up to 98.5% |
Battery Voltage | Default +192Vdc |
Battery Quantity | 32–40 pcs depending on configuration |
Battery Type | VRLA / Lithium battery system optional |
Communication | USB / RS485 |
Optional Monitoring | SNMP card / Dry contact card |
Parallel Redundancy | N+X parallel redundancy support |
Working Temperature | 0°C–40°C |
Working Humidity | 0–95%, non-condensing |
Battery Options
TITAN 33 supports traditional VRLA battery banks and project-based lithium battery solutions.
Customers can choose different battery configurations according to required backup time, site space, lifecycle expectation and maintenance preference.
For projects that require lower maintenance, longer service life and smaller battery footprint, lithium battery integration can be discussed according to project requirements.
OEM & Private Label Support
ZYKEVO supports OEM and private label UPS projects for distributors, system integrators and regional power brands.
Available OEM support includes:
- Logo branding
- Product label customization
- Cabinet appearance discussion
- User manual customization
- Packaging customization
- Technical datasheet support
- Project configuration support
- Battery solution discussion
This helps regional UPS brands build a stronger local product line while using a stable and proven UPS platform.
Why Choose TITAN 33 30kVA–80kVA
TITAN 33 30kVA–80kVA is designed for customers who need more than a basic UPS box.
It is suitable for projects where reliability, serviceability, battery flexibility and long-term cooperation matter.
For distributors, it supports a professional three phase UPS product line.
For system integrators, it helps reduce technical risk before installation.
For IT and telecom service providers, it provides stable backup power for critical infrastructure.
Frequently Asked Questions
What is the difference between 10–40kVA and 30–80kVA TITAN 33?
The 10–40kVA range is suitable for smaller server rooms, IT rooms and standard commercial projects. The 30–80kVA range is designed for larger loads, data centers, telecom sites, industrial facilities and higher-capacity backup power applications.
Is TITAN 33 30–80kVA suitable for unstable grid environments?
Yes. TITAN 33 is designed with wide input voltage tolerance, online double conversion technology and DSP control to support operation in unstable grid environments.
Can TITAN 33 work with generators?
Yes. The wide input voltage and frequency range helps TITAN 33 adapt to generator-based power environments, depending on project configuration.
Can TITAN 33 use lithium batteries?
Yes. TITAN 33 can support VRLA battery systems and lithium battery solutions according to project requirements.
Is OEM branding available?
Yes. ZYKEVO supports OEM and private label UPS projects, including logo, packaging, manuals and technical documentation.
Request a Quote
Looking for a reliable 30kVA, 60kVA or 80kVA three phase online UPS supplier?
Contact ZYKEVO to discuss your project load, backup time, battery configuration, OEM branding and delivery requirements.
